The Walk & Go is comprised of two gates, one base sensor, 4 antennas (each pair
of gate is associated with two antennas) and hardware module.
How to assemble each gate with screws:

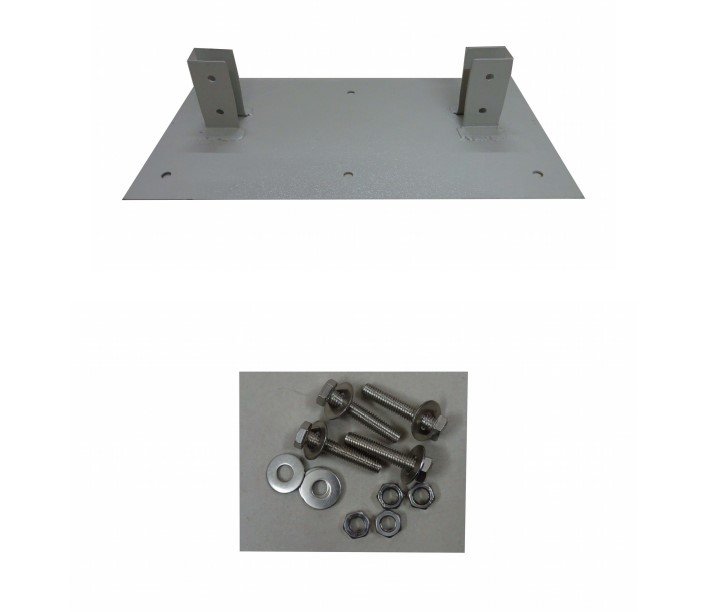

At first, we have to assemble each gate with their bottom parts with screws.
Before assembling the all parts, bottom parts of each gates and screws are given
in the following pictures:Lorem ipsum dolor sit

After assembling the gate with the bottom parts with screws, front and back part
of each gate will look like the following pictures:

How to connect antennas with the antenna port:

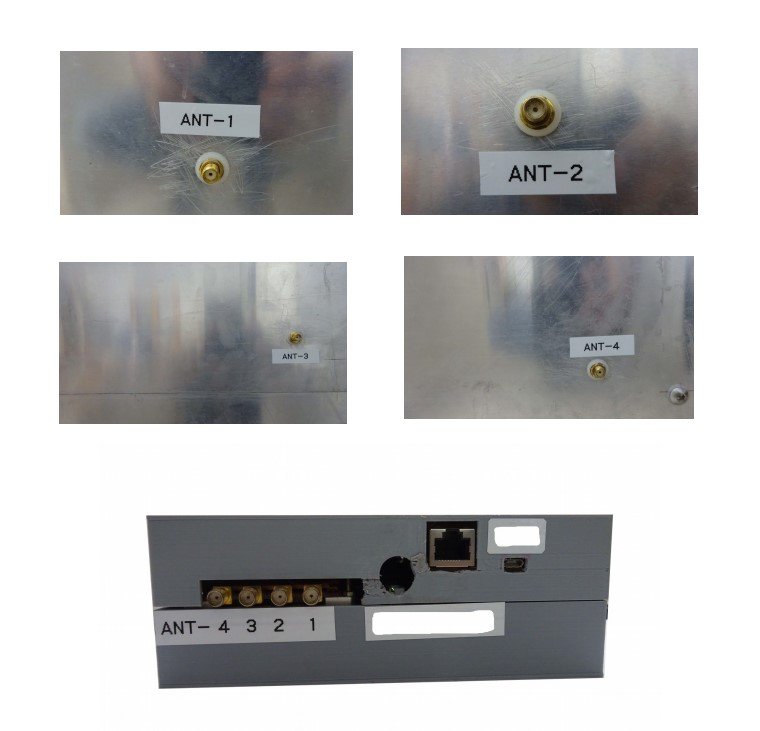

There are total 4 antennas (labeled as as ANT-1, ANT-2, ANT-3 and ANT-4), 2
antennas on each gate. There are 4 cables for 4 antennas. We can connect each
antenna with the ports (labeled as ANT- 4 3 2 1) of hardware module via each
cable. Ant1 will got to the number 1 port of the module, ANT2 will go to the
number 2 port of the module, ANT3 will go to the number 3 port of the module
and ANT4 will go to the number 4 port of the module..

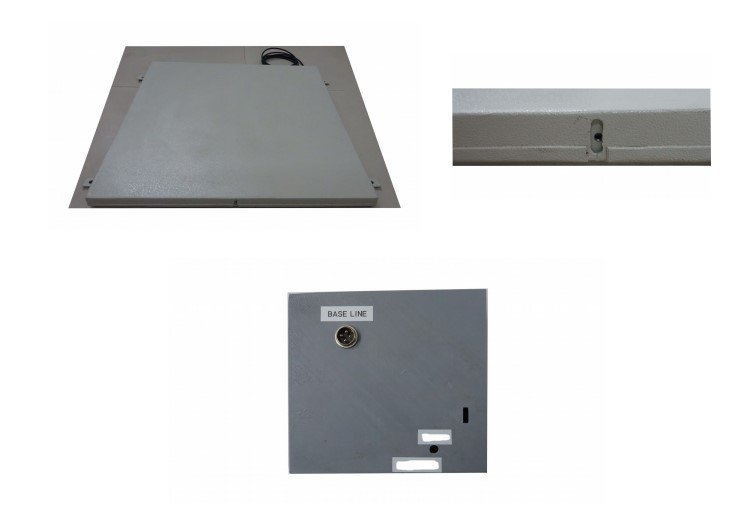

How to assemble base sensor with the hardware module:
A cable will connect the port in the base sensor with the port in the hardware
module labeled as BASE LINE.

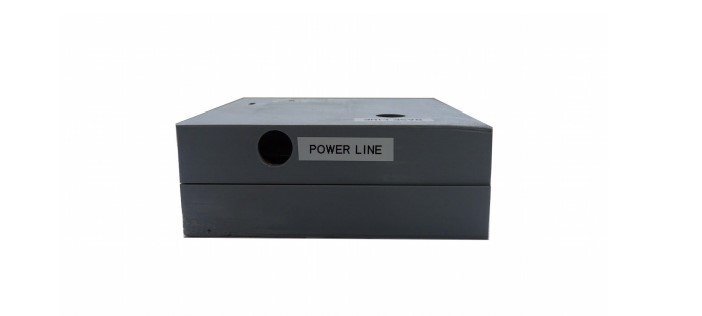

POWER LINE:
A connection from an external power supply (12V, 5A) will go the POWER LINE
port in the hardware module.

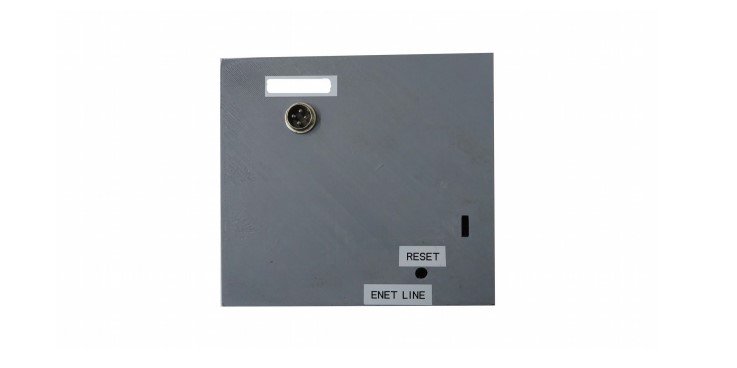

ENET LINE & RESET:
A cable from Ethernet will be connected to to the ENET LINE labeled port in
hardware module.
There is a button in the hardware module labeled as RESET. If system gets
hanged, we will have to push the button with a pin.

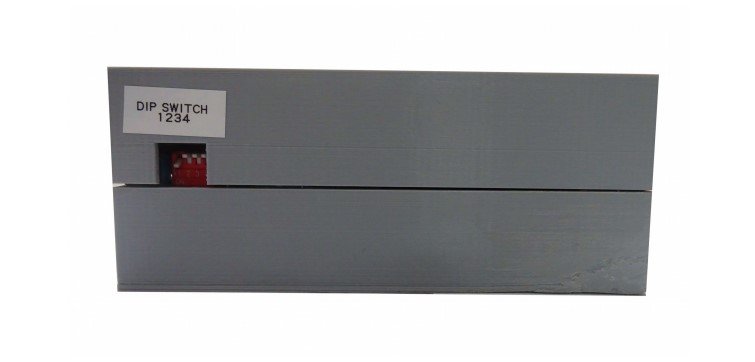

DIP SWITCH 1 2 3 4:
There are 4 deep switches labeled as DIP SWITCH 1 2 3 4 in the hardware
module. If we turn on the 1 no Deep Switch, when uhf card is read, scrolling
display in the gate will show the read option.

USB:
USB port is used for debugging and firmware update. We will have to
connect it via USB cable with the computer.

MATRIX LINE:
If we connect a scrolling display with the port labeled as MATRIX LINE in the
hardware module, the display will show the READ option (CHECK IN, CHECK
OUT and TIME)..
