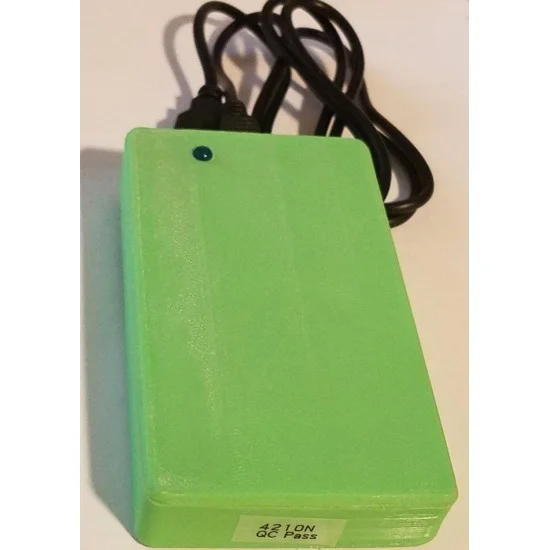

J4210N NFC Desktop Reader Writer| USB Powered |13.56MHz

Brand: Jence

About this item

• The J4210N is a PC-linked Contactless Smart Card (NFC) Reader/Writer developed on the 13.56MHz Contactless Technology.
• Supports both ISO 14443 and ISO 18092, MiFare, ISO 14443 Type A and B, FeliCa and NFC tags.
• By making use of high-speed card access and full USB speed of 12 Mbps, Read & Write operations are faster and more efficient.
• NFC mobile tag, access control, time attendance and so on.
• Uses USB 2.0 or 3.0 port of a PC.
• Emulate as USB serial port
• Full SDK available. Can be used with Windows and Linux.
• Reads Mifare? 1k, 4k, Ultralight?, Felica? cards.
• Far easier to program than other NFC readers. Memory content could be edited.
• Can detect chip type and show memory content.
• Includes the reader/writer and a 1 meter USB mini cable.
• Open source royalty free Java source code. For indoor use only.; Operating system: Windows 10
• 2 Years Warranty

Specification

• Item Type: Desktop Reader
• Color: Dark Grey | Beige
• Enclosure Material: 3D Printed PLA
• Working Frequency: 13.56MHz
• Protocol: ISO14443
• Antenna: pcb loop antenna
• Read Distance: 5cm max
• Writing Distance: 6 inch max
• Power: DC+5V
• Working Temperature: -20 to 55 C
• Storage Temperature: -40 to 85 C
• Communication Interface: USB Serial
• Power Adapter: USB
• Development Kit: Open source SDK
• Platforms: Windows, Mac OS X and Linux
• Item Dimensions LxWxH: 4x3x1 inches

Packing List

1.Desktop Reader
2.1m Data Cable
3.UHF tag

Video Tutorial:

Please go to the following link for the video demonstration about conveninence of using 4210N with compared to ACR1222U
YouTube

Drivers:

• CP210x Chip Drivers:Download
• Microchip MCP2221 Drivers: Download
